Bencore · Doors and walls
Crystal glazed door and wall
A Lightben CC core sealed inside double glazing. The look of Bencore with the performance of glass, rated Bs1d0.

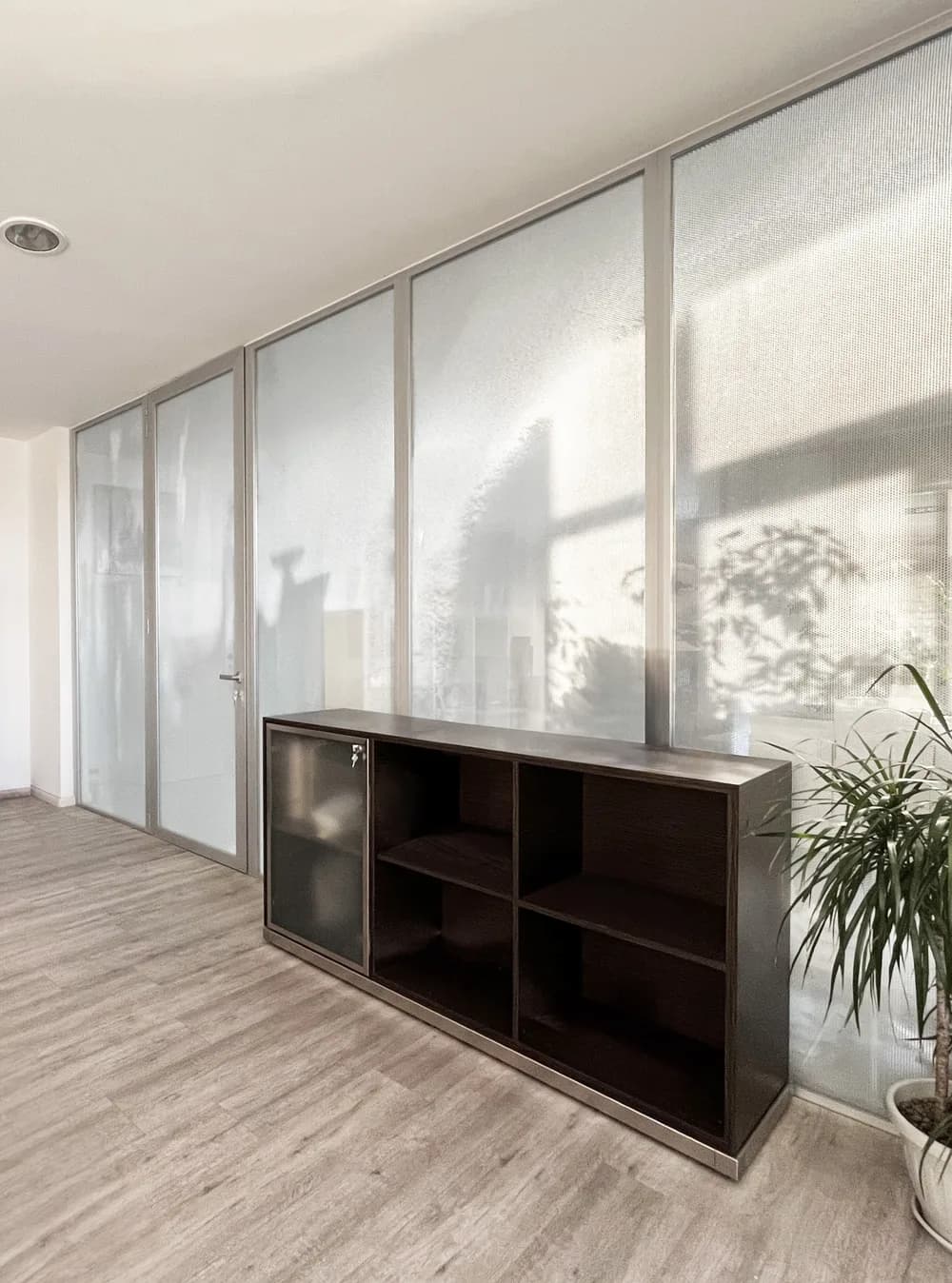

Crystal is the system Bencore built for projects that need glass. The innovative double glazing unit combines the core of Lightben CC, in any of its colours, with skins of glass, and the result sits in an adaptable metal frame as a door or a wall. The honeycomb modulates the light in intensity and colour; the glass takes care of thermal and, above all, acoustic insulation.
The whole door and wall system carries the European Bs1d0 fire reaction certificate, which Bencore describes as making it able to stem the spread of fire in every area it divides. The frame adapts to the dimensions of the space, so Crystal goes into office floors and homes alike.
Colours and finishes
Crystal on the light table
Every code Bencore offers for Crystal, by family. Tap one to see it at wall scale, lit or unlit, then quote it with one click.
Lightben CC, colour core
65Red glossy
16 of 16. The colour is in the core, so each code is one colour in a glossy (T) or satin (S) skin.
Why specify it
What Crystal does well
Lightben inside glass

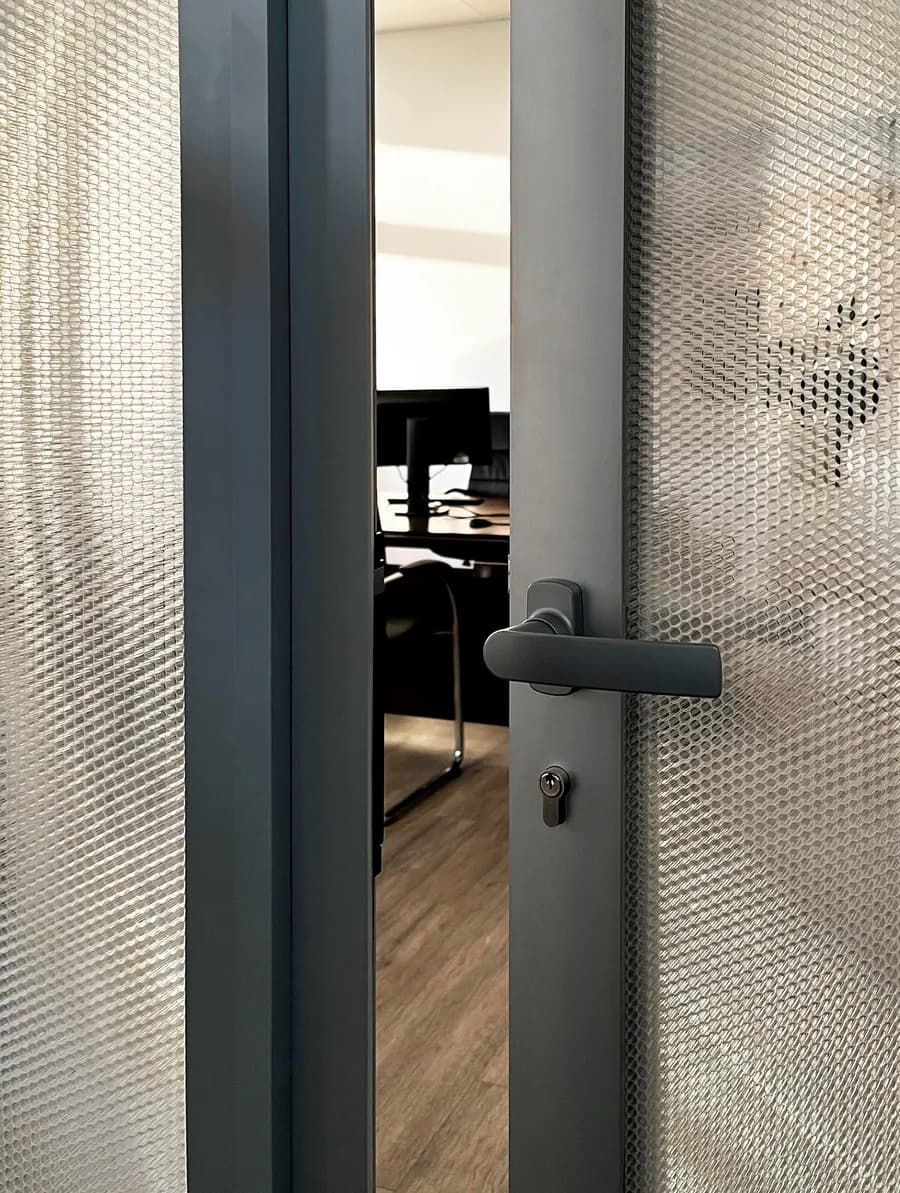

A Lightben CC core, in all its colours, sealed between glass skins in a double glazing unit.
Sound and heat of glass
The double glazing improves thermal and above all acoustic insulation over a bare panel.
Bs1d0 fire certificate
The entire door and wall system holds the European Bs1d0 classification.
Frame fits the room
A metal structure that adapts to the dimensions of the space, for business and domestic interiors.
Technical data
| Unit | Double glazing with a Lightben CC core between glass skins |
|---|---|
| Core colours | All Lightben CC colours: red, orange, yellow, silver, black, green, light blue, white |
| Fire reaction | Bs1d0, European classification, for the door and wall system. Bencore's certificate list also shows a 35 mm double glazing at UK Class 1, not named as Crystal |
| Frame | Adaptable metal structure |
| Use | Dividing walls and doors, business and domestic |
| Made in | Carrara, Italy, by Bencore |
| Supply | Quote only, through FIDAR System, authorized Canadian dealer |
From Bencore's Living catalogue and 2024 technical presentation. Figures not published by Bencore are not shown; ask us for the data sheet of the exact build.
Where it is used
- Office partitions needing a fire rating
- Meeting rooms and boardrooms
- Hotel and hospitality walls
- Residential glazed dividers
Questions
Crystal questions
Why put a honeycomb inside glass?
To get both sets of properties. The Lightben core gives the directional translucency and colour of a Bencore panel; the sealed glass unit gives the sound and heat insulation of double glazing and lets the system carry a Bs1d0 fire certificate.
Can the core colour be chosen?
Yes. Crystal uses Lightben CC, the colour core panel, in all its colours: red, orange, yellow, silver, black, green, light blue and white.
Does the Bs1d0 rating apply in Canada?
Bs1d0 is a European classification, not a Canadian one. For a rated wall, ask us for the certificate and have the project's code consultant map it to the National Building Code requirement before specifying.
