Bencore · Doors and walls
Koros doors and walls
Koros means space. A 45 degree aluminium door and wall system that fits into an existing wall, up to 3 metres in one panel.
Koros is the door and wall system Bencore designed for office space. The frame is an aluminium profile by Ponzio Aluminium with a 45 degree cut, available in a range of steel colours and RAL finishes to match the Bencore panel collection. The leaf and the wall panels can be supplied from 2100 up to 3000 mm in a single element with no joint and no transom.

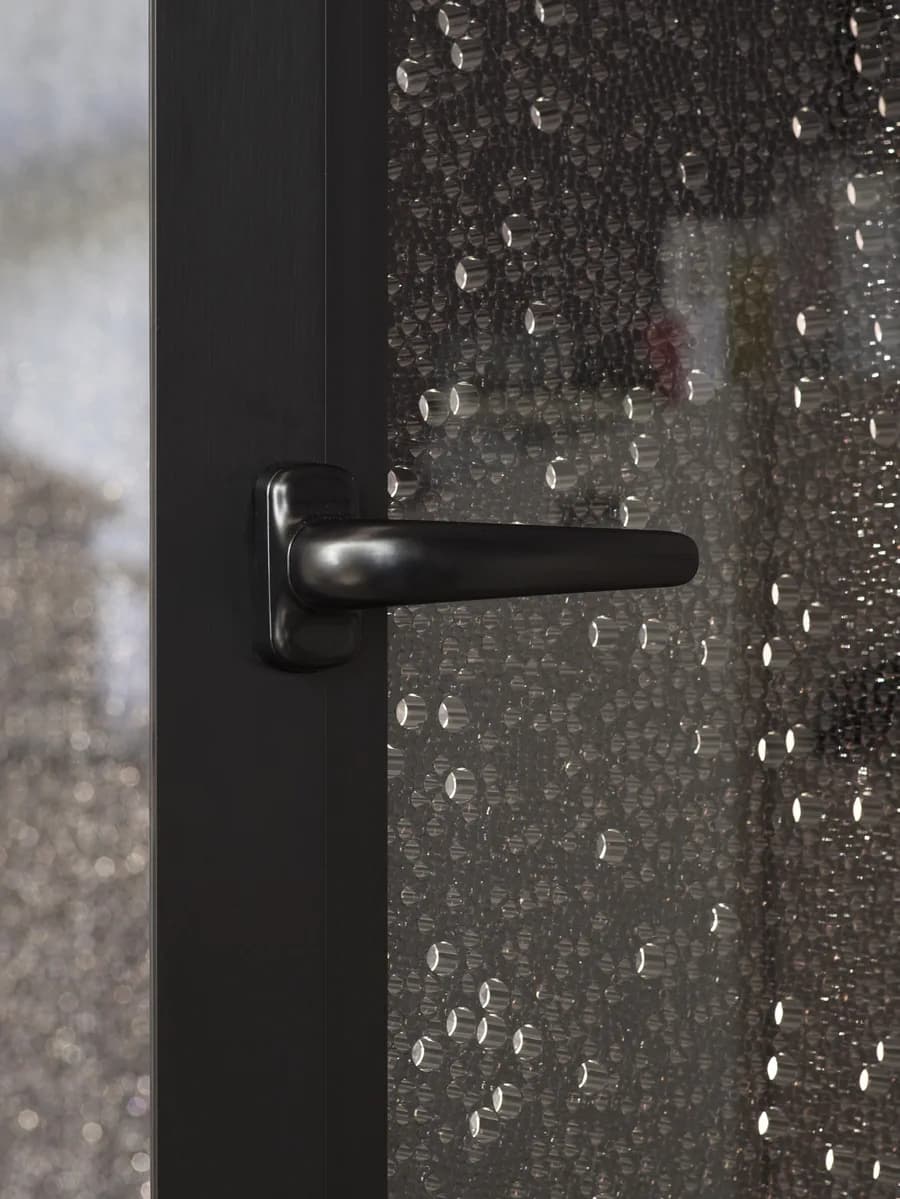

It is built to go into buildings that already exist. The system can be inserted into a wall of another material, masonry, wood or plasterboard, or used to raise a floor to ceiling wall up to 3 m. The catalogue shows it with a black frame, a dark bubble patterned panel and a black lever handle.
Colours and finishes
Koros on the light table
Every code Bencore offers for Koros, by family. Tap one to see it at wall scale, lit or unlit, then quote it with one click.
Starlight Extra
01Clear glossy
21 of 21. T is the glossy skin, S the satin.
Why specify it
What Koros does well
One panel to 3 metres
Supplied from 2.1 m to 3 m in a single element, no joint and no transom window.
Goes into what is there
Fits into an existing masonry, timber or plasterboard wall, or stands as a full height wall of its own.
Steel colours and RAL
Profiles finished to match the panel: the catalogue shows black with a black Kaos core.
Single modules
The wall and the swing door can be bought as individual modules, so a one door job is possible.
Technical data
| Frame | Aluminium profile by Ponzio Aluminium, 45° cut, steel colours and RAL finishes |
|---|---|
| Height | 2100 to 3000 mm in one panel, no joint or transom |
| Door width | 800 mm up to 2100 high; 900 mm up to 2700; 1000 mm up to 3000 |
| Fits into | Masonry, wood or plasterboard walls, or floor to ceiling on its own |
| Panels | Starlight Extra; Lightben Large, Kaos 3D, Kaos 3D White and Black, CC, Kaos Mirror; Ecoben Wave and Green Cast; Hexaben Small, Large and Mirror |
| Made in | Carrara, Italy, by Bencore |
| Supply | Quote only, through FIDAR System, authorized Canadian dealer |
From Bencore's Living catalogue and 2024 technical presentation. Figures not published by Bencore are not shown; ask us for the data sheet of the exact build.
Koros door sizes
Maximum leaf width for each height, from the Koros data sheet in the 2024 presentation.
| Up to height | Leaf width |
|---|---|
| 2100 mm | 800 mm |
| 2700 mm | 900 mm |
| 3000 mm | 1000 mm |
Where it is used
- Office partitions and meeting rooms
- Retrofits into existing walls
- Clinics and professional suites
- Hotel corridors
- Residential interiors
Questions
Koros questions
How is Koros different from Fos?
Koros is the 45 degree profile system tuned for office fit outs: it comes in steel colours and RAL finishes, goes up to 3 m in one panel, and is designed to be inserted into an existing wall. Fos has both 45 and 90 profiles and a wider set of door types, including pocket and multi wing sliders.
Can Koros be fitted into a drywall partition?
Yes. Bencore designed it to be inserted into a pre-existing wall of masonry, wood or plasterboard, or to form a floor to ceiling wall on its own up to 3 m.
What is the tallest Koros door?
3000 mm, at a leaf width of 1000 mm. At 2700 mm the width is 900 mm, and at 2100 mm it is 800 mm.
