Every sheet material fabricates differently, and the difference is where projects succeed or fail. Cast acrylic laser-cuts with a flame-polished edge; PVC releases corrosive gas under the same beam. Polycarbonate cold-bends on site without heat; acrylic cracks if you try. ACM routs and folds like sheet metal but destroys laser optics. Knowing these boundaries before the material hits the table is what separates a clean first run from a re-order.
This category collects FIDAR System's practical, tool-in-hand guides for Canadian sign shops, fabricators, and serious DIYers: cutting and drilling techniques by material, edge finishing, thermoforming, substrate selection for sign faces, and the specification details - tolerances, UV layers, fire ratings - that determine how a sheet behaves in the shop and in the field.
Which plastic sheets can be laser cut safely?

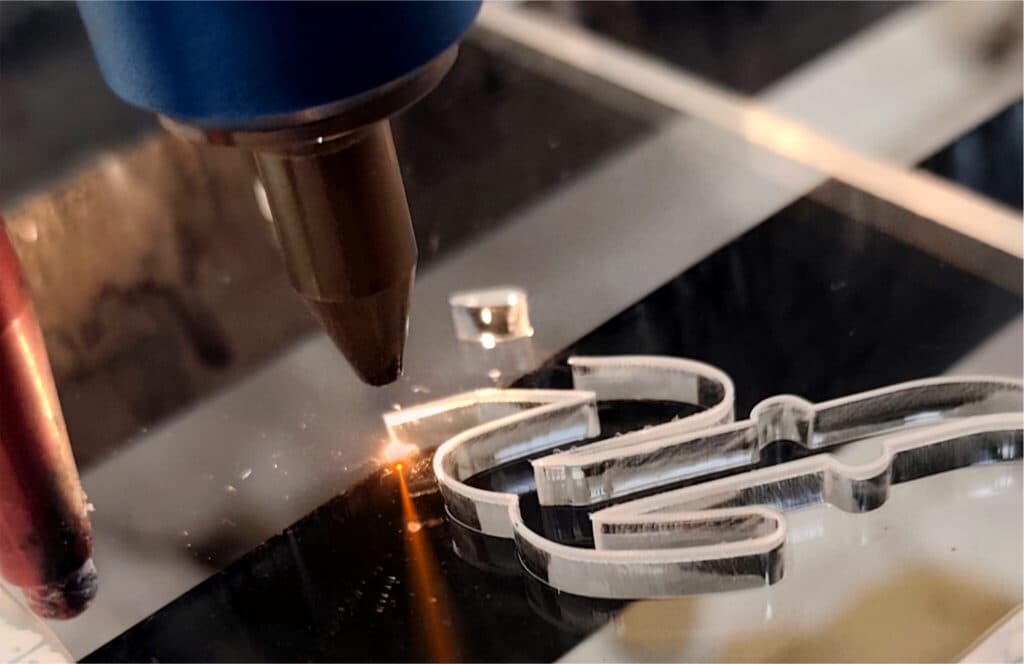

Cast acrylic is the best laser substrate - it cuts cleanly with a flame-polished edge and engraves with high contrast. Extruded acrylic cuts acceptably with slightly lower edge quality. PVC should not be laser cut without serious fume extraction (it releases corrosive HCl gas), polycarbonate tends to yellow and discolour at the cut edge, and ACM cannot be laser cut at all because the aluminum faces reflect the beam.
How do I cut polycarbonate sheets?
Use a circular saw with an 80-tooth carbide blade or a jigsaw with a fine-tooth blade, feeding at a steady moderate rate. Score-and-snap does not work on polycarbonate - the material is too flexible to fracture at a score line. Leave the protective masking on during cutting, and drill fastener holes 1-2mm oversize to allow for thermal expansion.
Does FIDAR System offer cut-to-size service?
Yes. Cut-to-size is available across the sheet range - acrylic, PVC, polycarbonate, and ACM. Standard cut sizes are listed at posted prices; custom dimensions are quoted on request. Cut-to-size saves shops fabrication time and shipping cost on oversize sheets.
