Acrylic sheets - PMMA, plexiglass, cast acrylic - are the backbone of the Canadian fabrication industry. From the LED-backlit cabinet sign at a strip mall in Mississauga to the safety glazing panel on a manufacturing line in Hamilton, acrylic sheet applications in Canada span virtually every commercial sector. Understanding where acrylic outperforms alternatives - and where it doesn't - is the foundation of smart material sourcing.

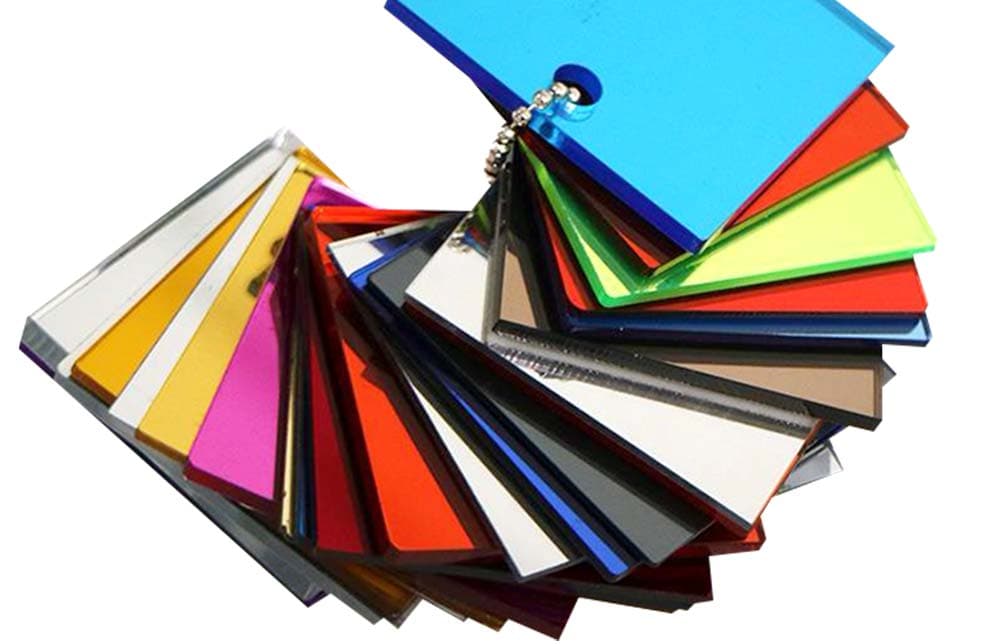

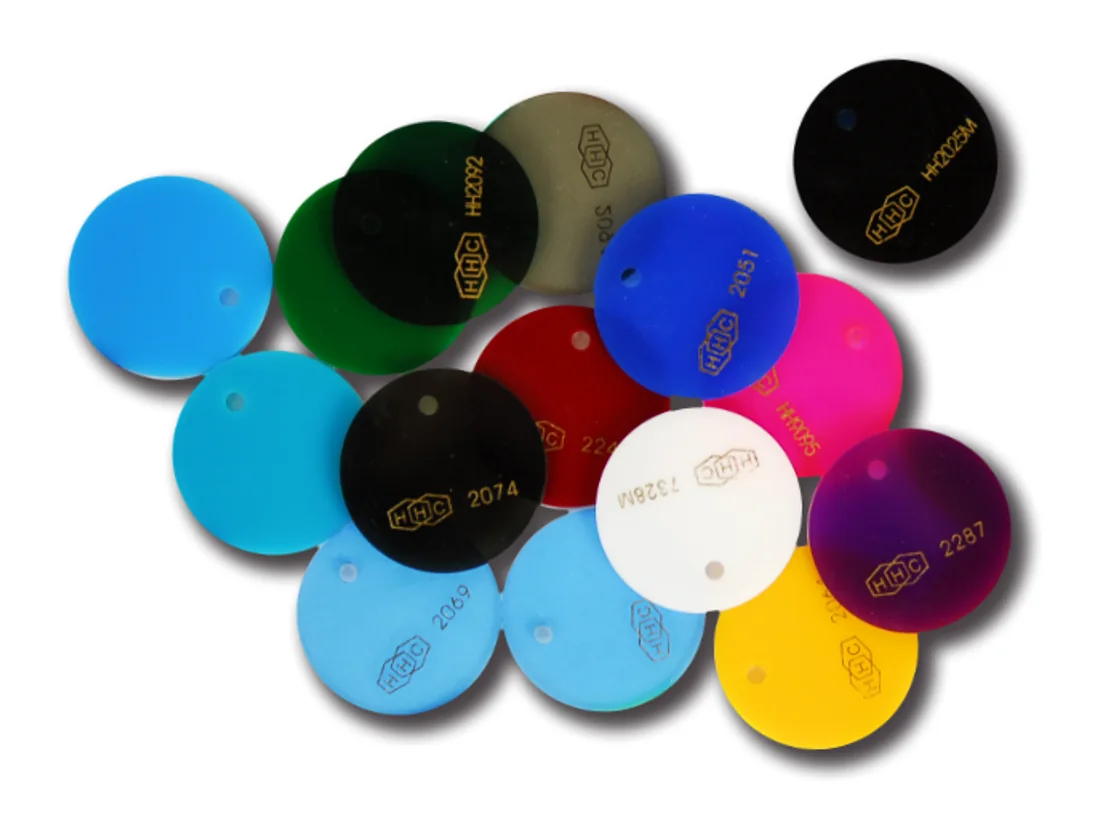

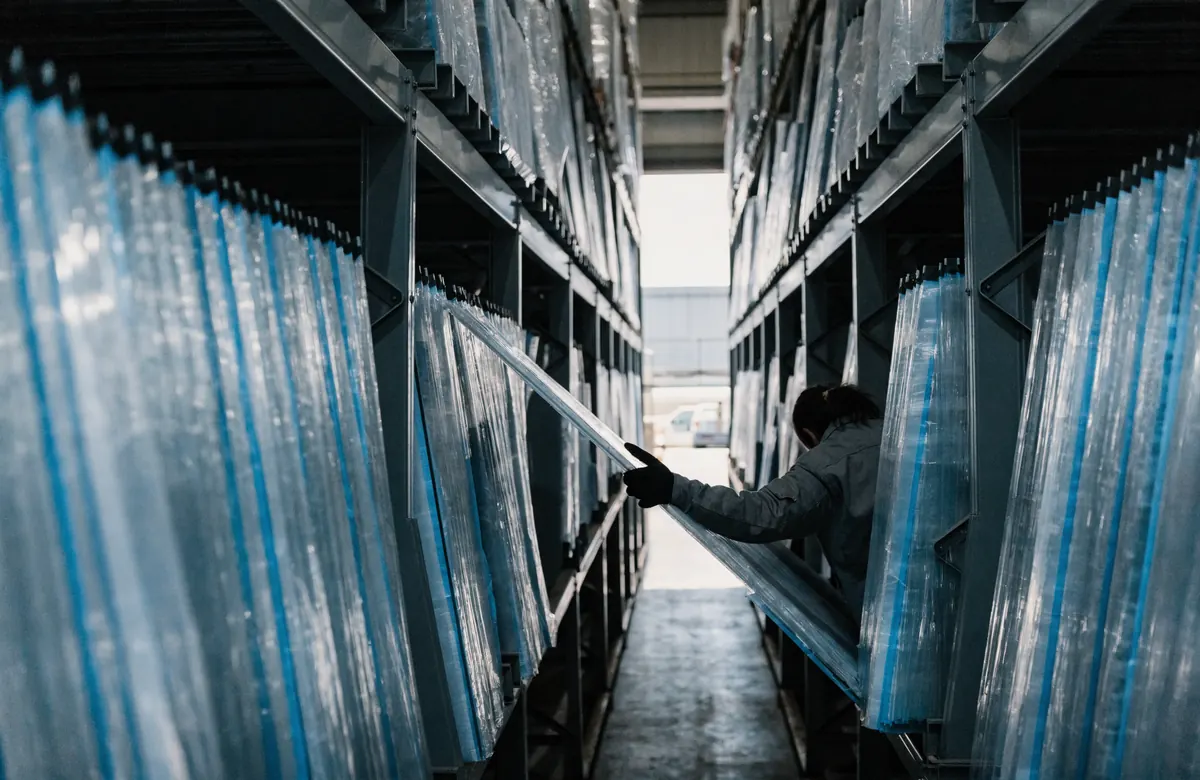

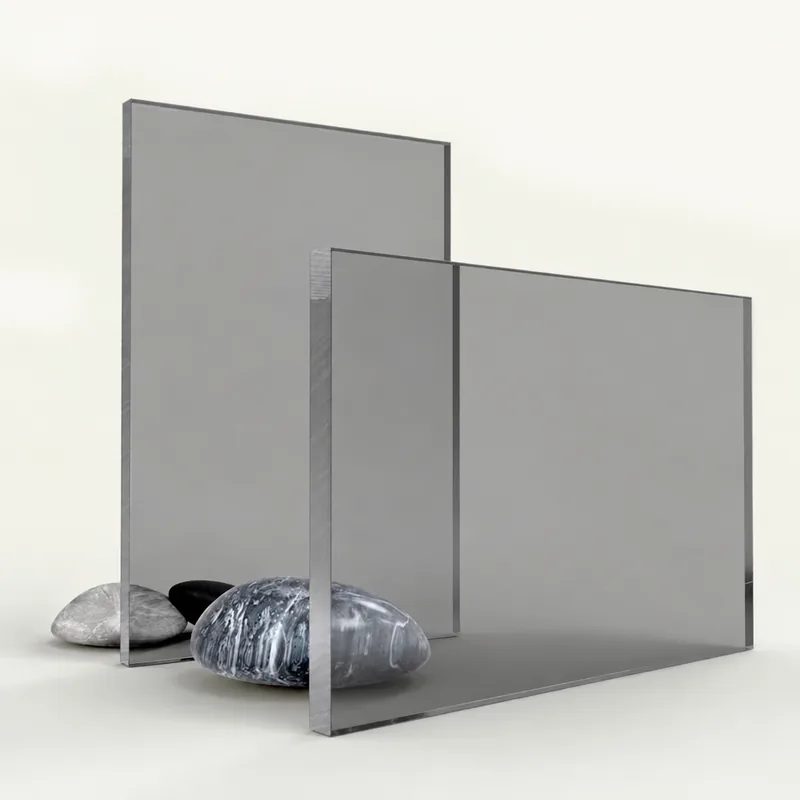

FIDAR System stocks the full cast and extruded acrylic range at our North York, Ontario warehouse: clear optical-grade, white diffuser, black, coloured, mirror, frosted (P95), and extruded variants. As Canada's exclusive Hsin Hwa Chemical (HHC) distributor, we offer consistent batch-to-batch colour matching - critical for sign shops and fabricators who run multi-unit projects. Same-week shipping across Ontario; freight delivery coast to coast.
This guide covers the major acrylic sheet applications used by Canadian businesses, with material specifications, thickness recommendations, and direct links to the products and expert blog resources you need to make the right call.
Key Acrylic Sheet Applications by Industry
Signage and Graphics - The Largest Market

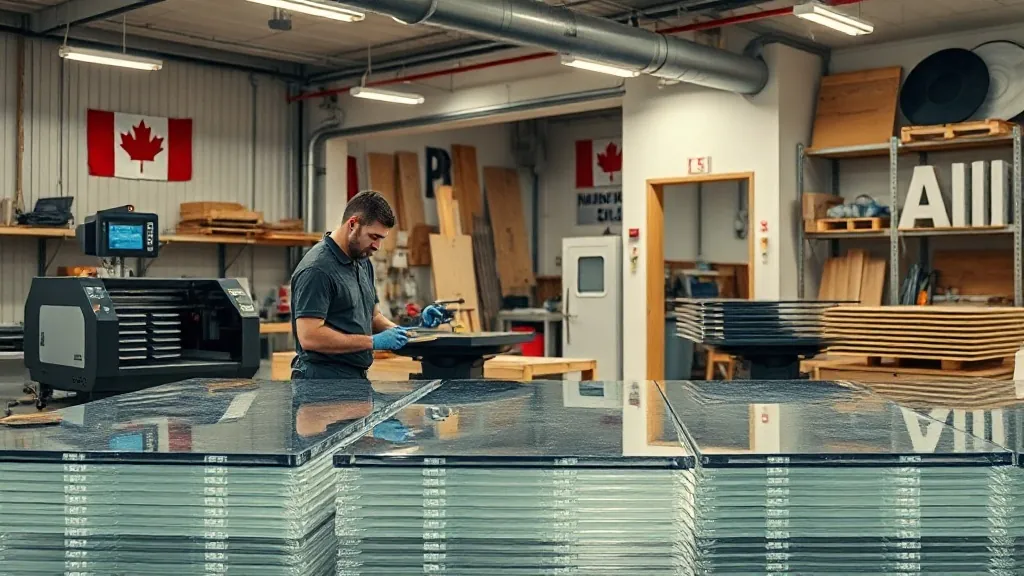

Canadian sign shops are the largest consumers of acrylic sheet. The material's combination of optical clarity, light transmission consistency, and laser processability makes it irreplaceable for:

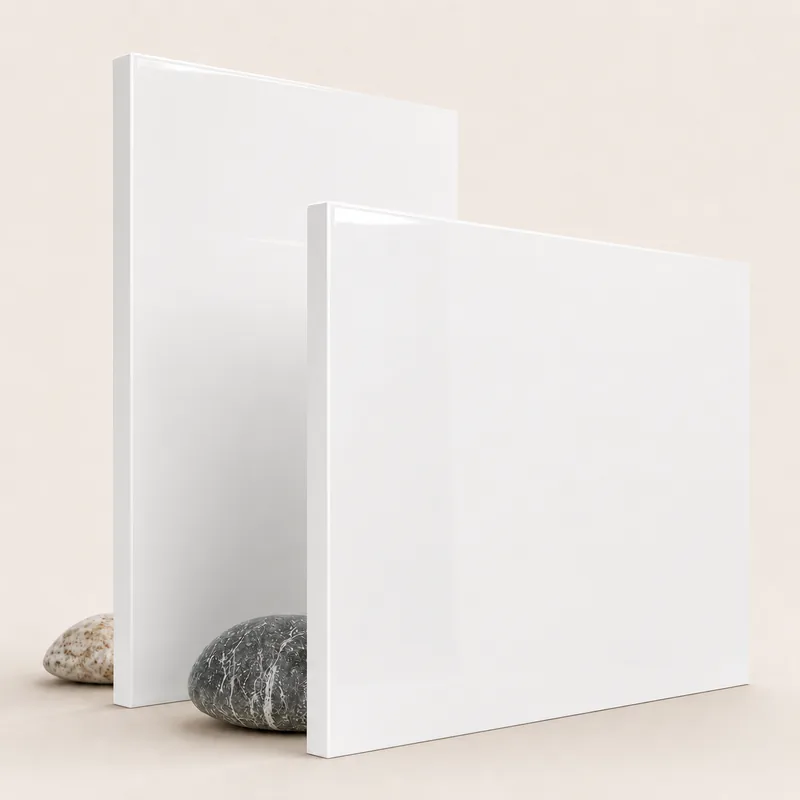

- LED cabinet sign faces - White and clear acrylic (2.8mm–5.5mm) as the illuminated face of backlit cabinet signs. White grade 7508 and clear cast are the two most common specifications.
- Channel letter faces - Coloured and white acrylic in 3mm–4.3mm, laser or router-cut to letter profiles, backlit with LED modules.
- Light box panels - 4.3mm or 5.5mm white diffuser for even LED distribution without hotspots.

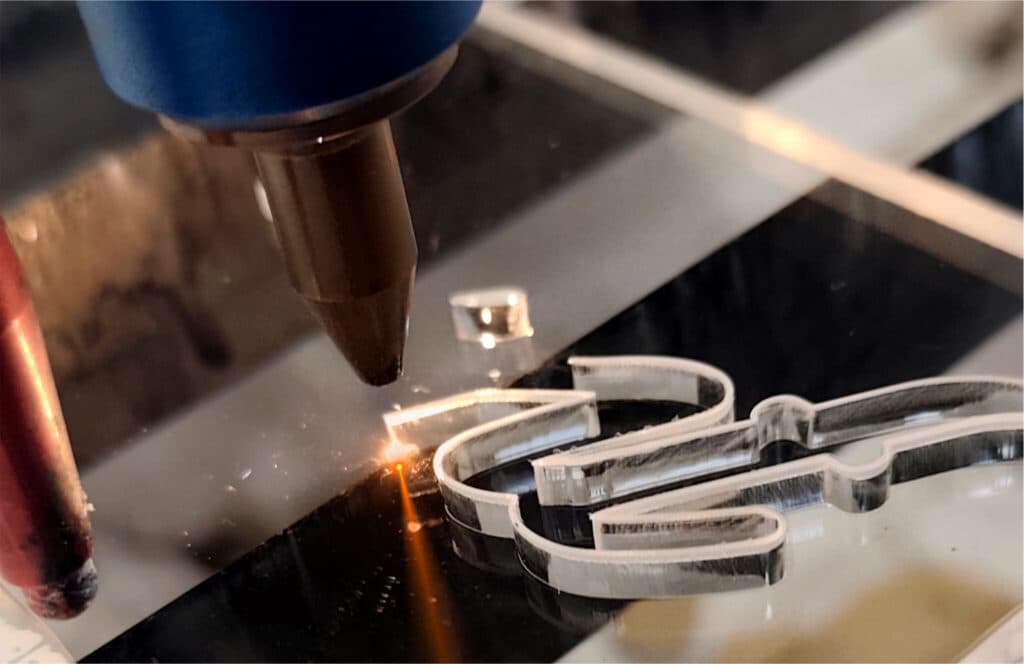

- Laser-engraved plaques - Cast clear and black acrylic for awards, recognition plaques, and branded signage.
For a complete signage material specification guide, see our article on laser-cut acrylic for Canadian sign shops.
Retail Display and Visual Merchandising
Cast clear acrylic's combination of transparency, rigidity, and workability has made it the standard material for retail display fixtures across Canada. Common applications include product risers, display cases, jewellery stands, slatwall inserts, and branded colour POP displays. For retail display, thickness typically ranges from 3mm for small risers to 9mm for structural display case panels. Read our full guide to acrylic in Canadian retail.
Architectural Glazing and Partitions
Clear and frosted acrylic is increasingly specified for architectural applications where glass weight, breakage risk, or custom shape complexity is a concern. Canadian interior design firms regularly specify acrylic for:

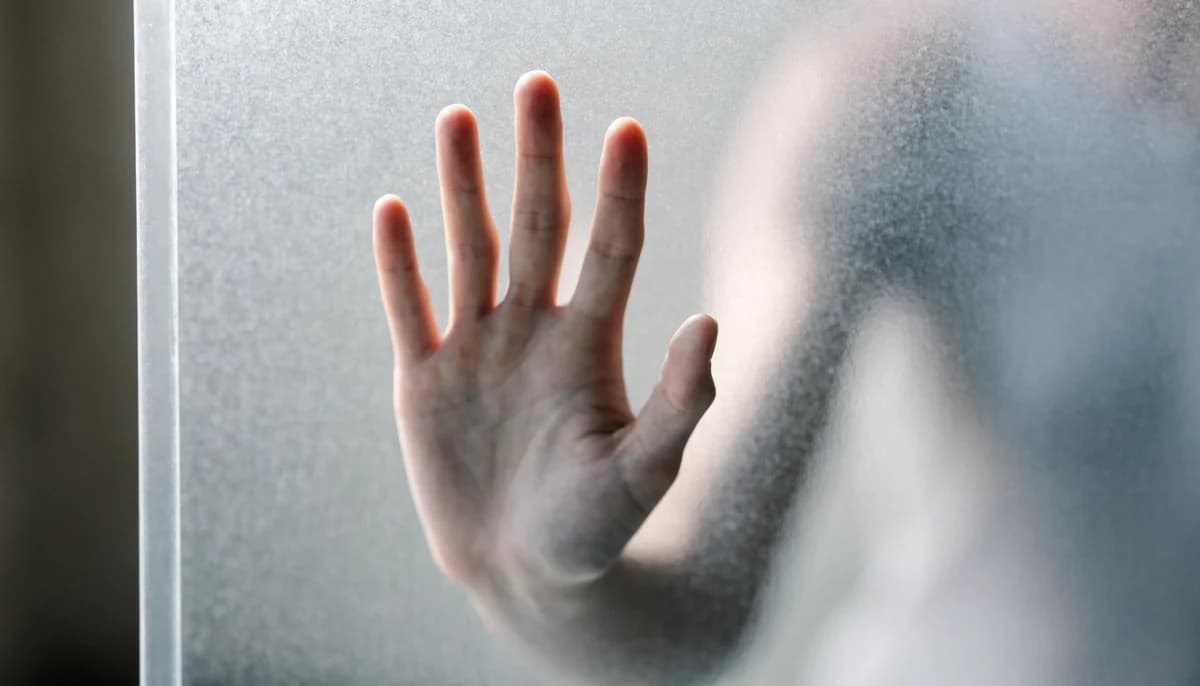

- Office partition inserts (P95 frosted for privacy, clear for open visual connection)
- Stair balustrade panels (6mm–10mm cast clear)
- Skylight glazing replacement (UV-stabilized cast)
- Feature wall panels with backlighting

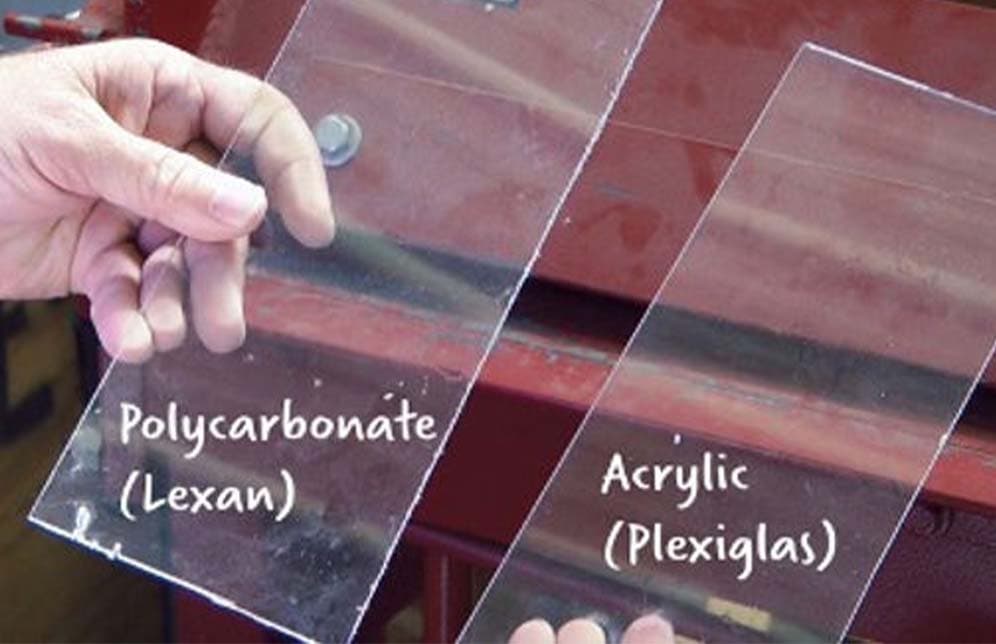

The acrylic vs. polycarbonate comparison covers when to upgrade to PC for higher-impact applications.
Industrial Safety Glazing and Machine Guards

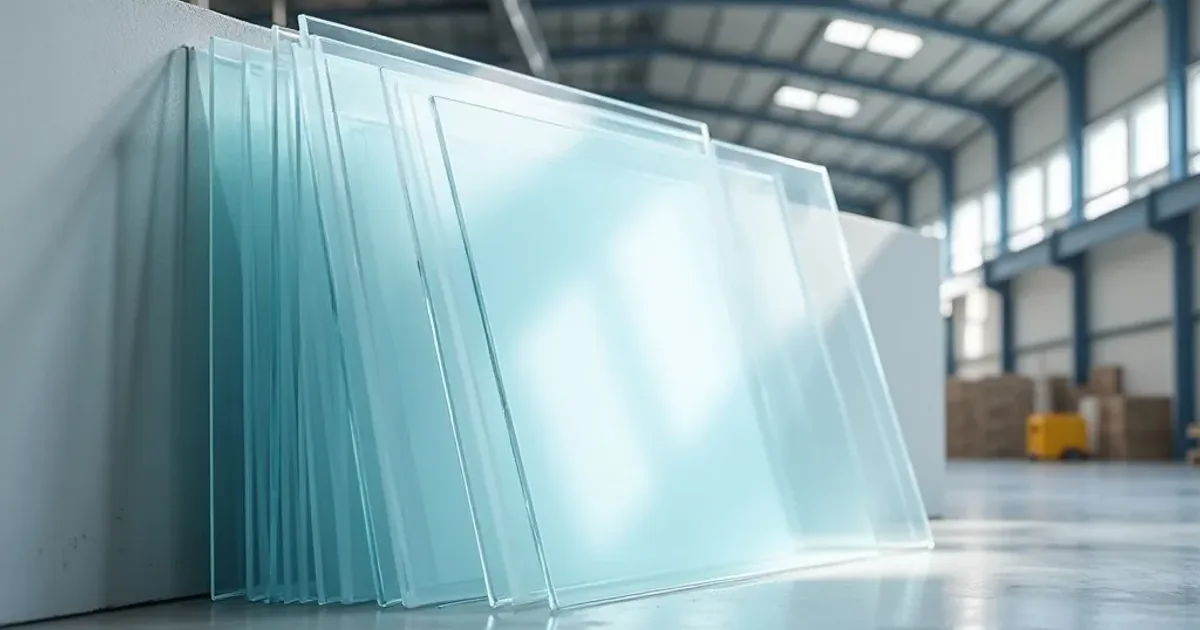

While polycarbonate is the preferred material for maximum-impact machine guards, thick cast clear acrylic (9mm–25mm) serves well in applications requiring both clarity and structural stiffness: custom observation windows, laboratory enclosures, and machine guard panels in lower-impact environments. For high-impact industrial requirements, see our polycarbonate sheet range.
Marine and Automotive Applications
UV-stabilized cast clear acrylic is the standard material for recreational marine glazing replacement - side windows, windshields, and hatch covers on Canadian pleasure craft. Read the detailed marine acrylic guide for thickness specifications and installation guidance. Automotive applications include custom gauge panels, interior trim elements, and light pipe components.

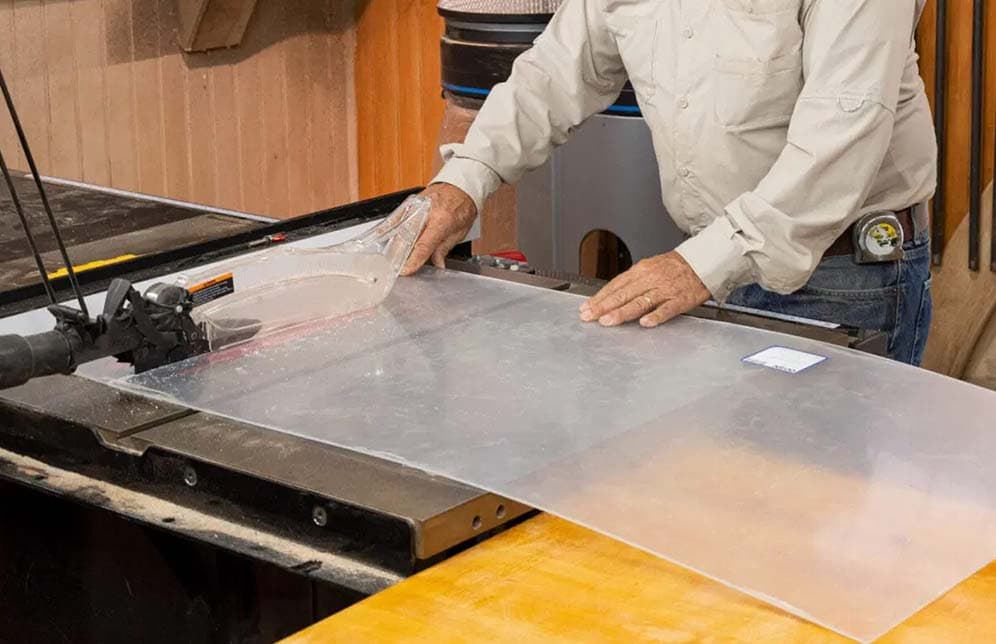

Acrylic Applications by Thickness
| Thickness | Primary Applications | Fabrication Method |
|---|---|---|
| 2 mm – 3 mm | Thin sign faces, decorative overlays, DIY projects | Score & snap, laser cut |

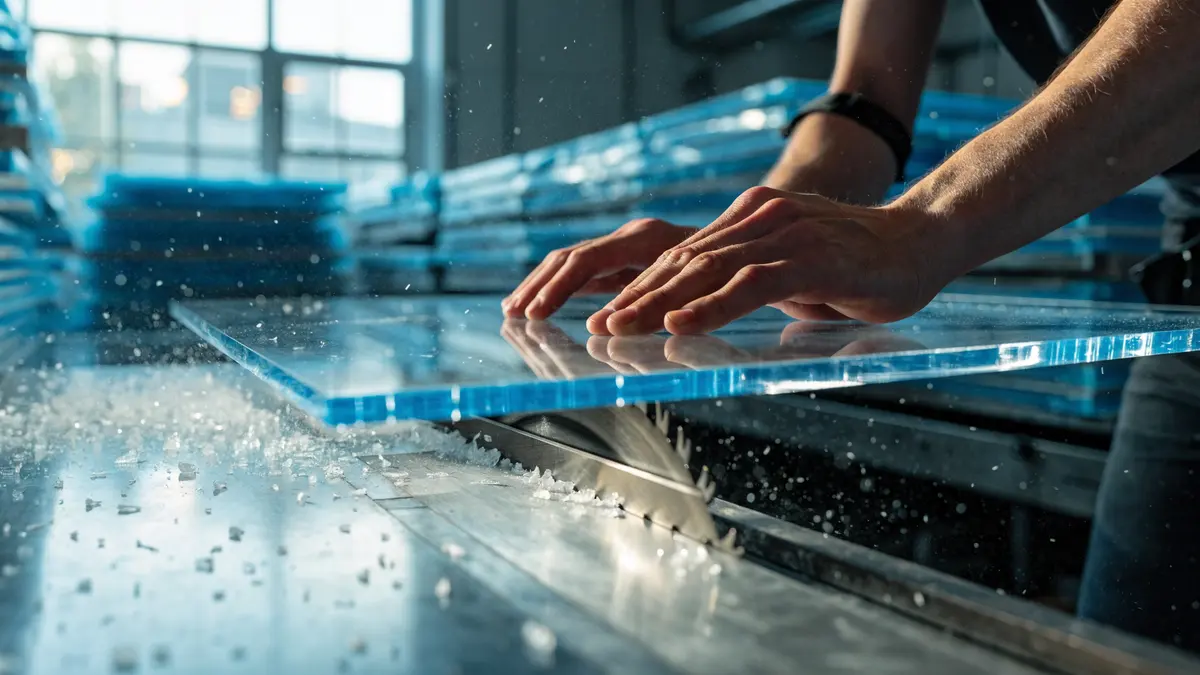

| 4 mm – 6 mm | Sign faces, display cases, partitions - commercial standard | Router, laser, table saw |
| 8 mm – 12 mm | Structural glazing, marine, furniture, tank panels | Router, table saw, thermoform |
| 15 mm – 25 mm | Custom aquariums, machine guards, heavy structural | CNC router, circular saw |
What is the most common acrylic sheet application in Canadian sign shops?
LED-backlit cabinet sign faces are the highest-volume acrylic application in Canadian sign shops. White diffuser acrylic (2.8mm–4.3mm) and clear cast acrylic are the two primary specifications. The sign face is router or laser-cut to the cabinet opening size, and LED strip or module lighting is mounted behind it inside the cabinet.
Can acrylic sheets be used for outdoor applications in Canada?
Yes, with the right grade selection. UV-stabilized cast acrylic maintains its clarity and mechanical properties for 10–15+ years in Canadian outdoor conditions. Standard extruded acrylic without UV stabilization will yellow and become brittle within 2–3 years of direct outdoor exposure. Always specify UV-stabilized cast for outdoor signage, marine glazing, and architectural exterior applications.
What is the difference between cast and extruded acrylic for fabrication?
Cast acrylic is manufactured in a cell-cast process that produces tighter thickness tolerances (±0.4mm), better surface hardness, and cleaner laser cutting results (flame-polished edges). Extruded acrylic is faster to manufacture and 15–25% cheaper, with slightly looser tolerances (±0.8mm) and less ideal laser-cut edge quality. For signage, laser processing, and high-visibility applications, cast is the professional choice. For cost-sensitive applications where edge quality isn't visible, extruded is perfectly serviceable.
What thicknesses of acrylic sheet does FIDAR System stock?
FIDAR System stocks cast clear acrylic from 1mm to 25mm (11 thickness options). White and black acrylic are available in 2.8mm, 4.3mm, 5.5mm, 6mm, 9mm, and 18mm. Coloured acrylic is stocked in 2.8mm, 4.3mm, and 5.5mm. Extruded clear is available from 2mm to 6mm. P95 frosted is available in 2.8mm, 4.3mm, and 5.5mm.
